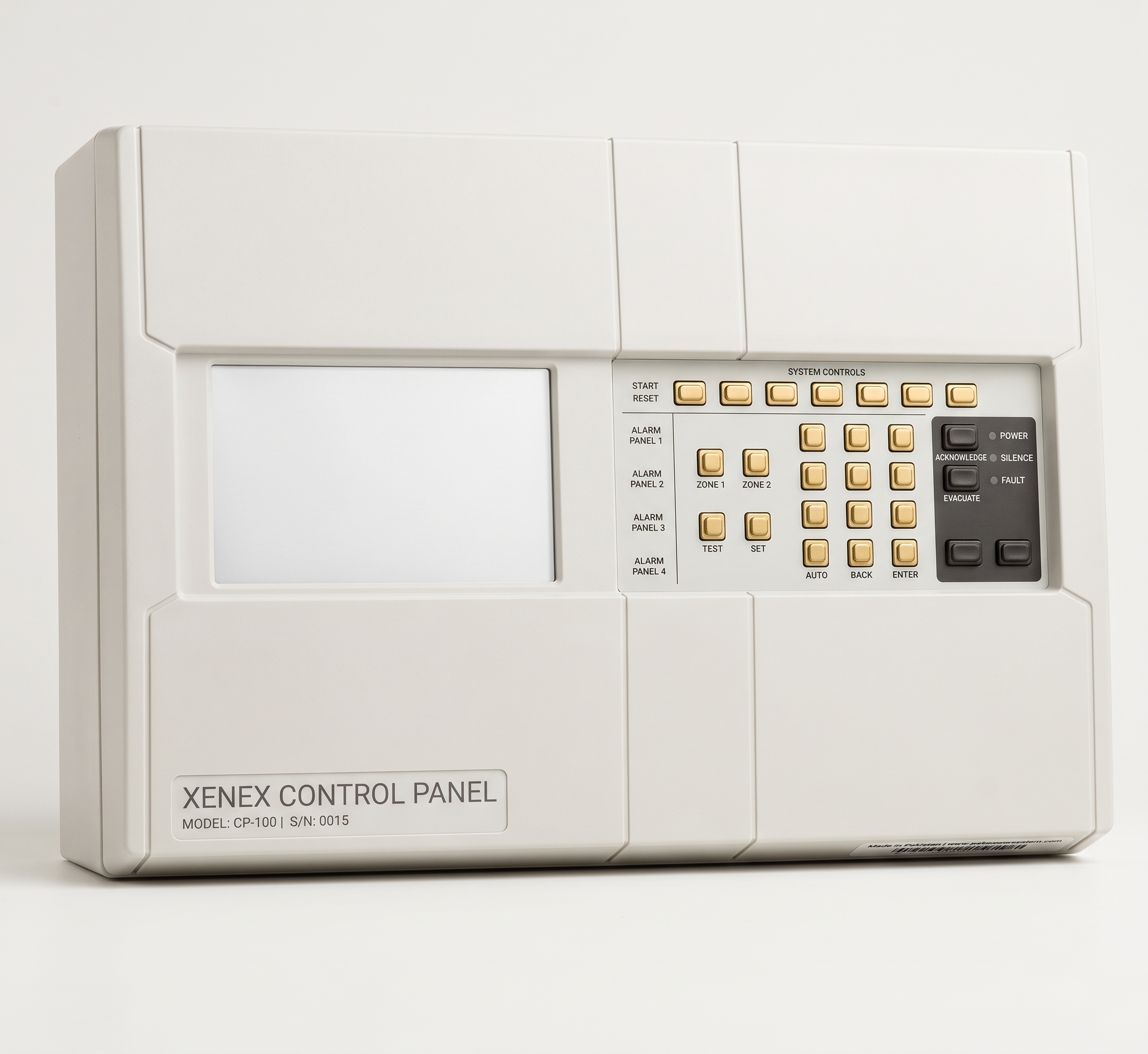

Xenex Control Panel
BSi approved to EN54:Parts 2&4, the Xenex control panel can be used on
installations meeting BS 5839:Part1, control panel options for 2-B zones can
be specified.
Designed to simplify system installation, each Xenes panel contains an integral
power supply and battery support to drive up to 8 alarm sounder circuits, 2
auxiliary relay contacts, a zone disablement facility and also one-man test and
commissioning features.
Utilising LPCB approved conventional smoke or heat detectors. Xenex offers
exceptional value for money.
Fire Alarm System (Addressable)

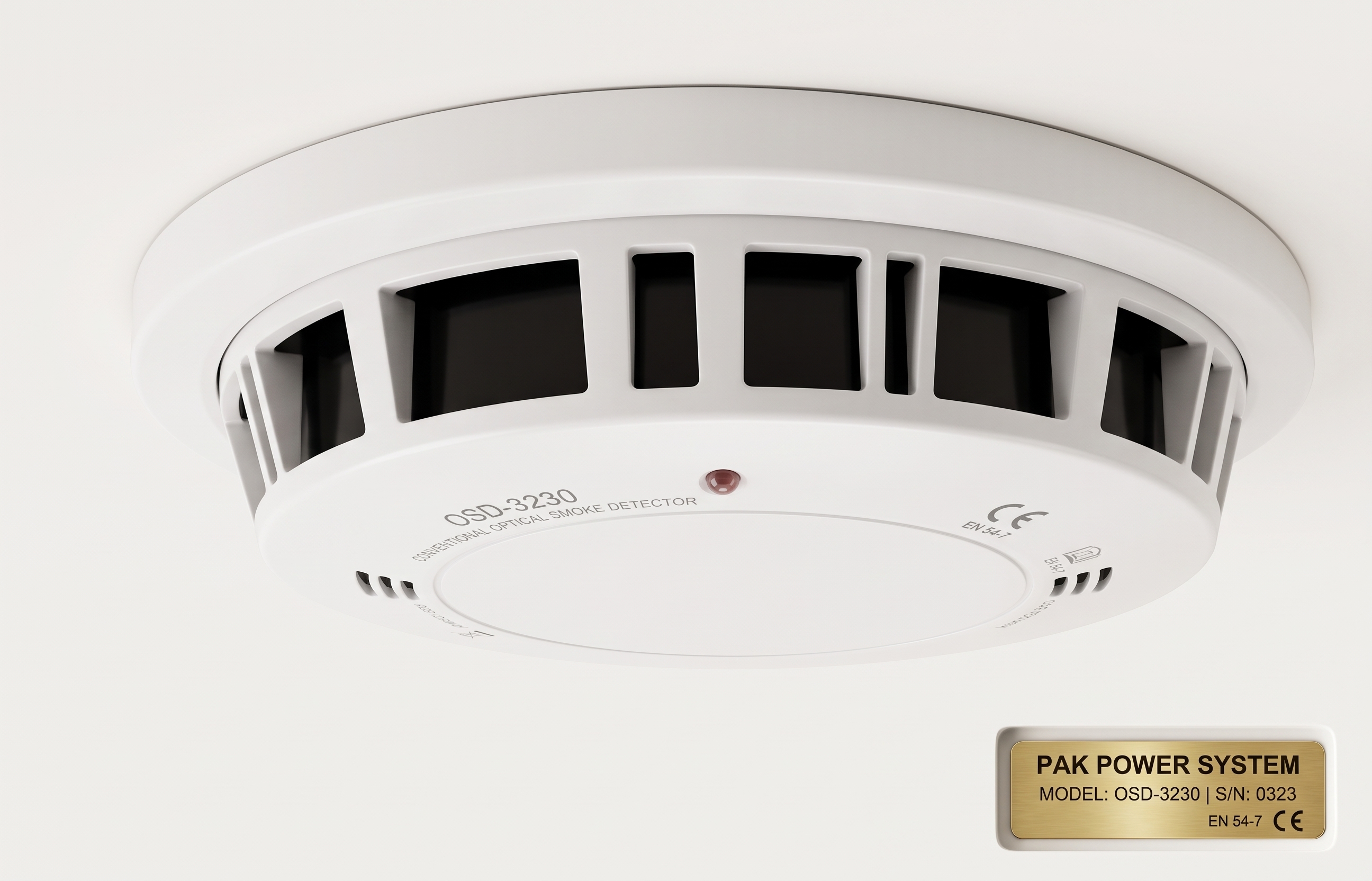

OSD-3230 Conventional Optical Smoke Detector
OSD-3230 Conventional Optical Smoke Detector uses a unique smoke chamber perfected by
engineers through long term fluid mechanics and optic refraction tests. Fire is detected by optica
sensing technology. Detector has a series of algorithms developed to minimize faulty detections
and to provide pollution warning. Smoke chamber can be easily removed for cleaning in case of
possible pollution in excessively duty environments.

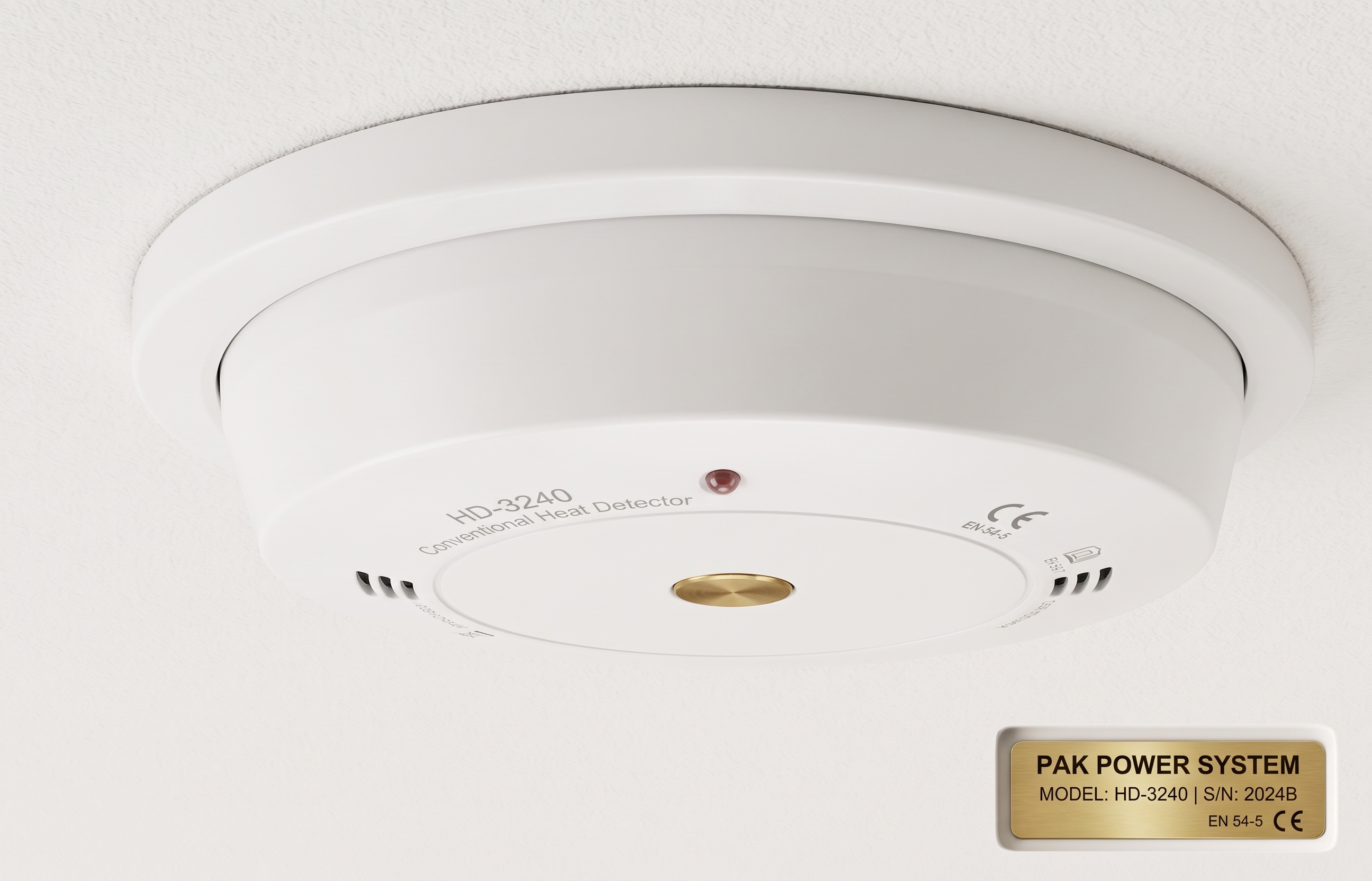

HD-3240 Conventional Heat Detector
HD-3240 Conventional Heat Detector uses heat detection technology to detect fire. It has a serie
of advanced algorithms to minimize faulty detections.

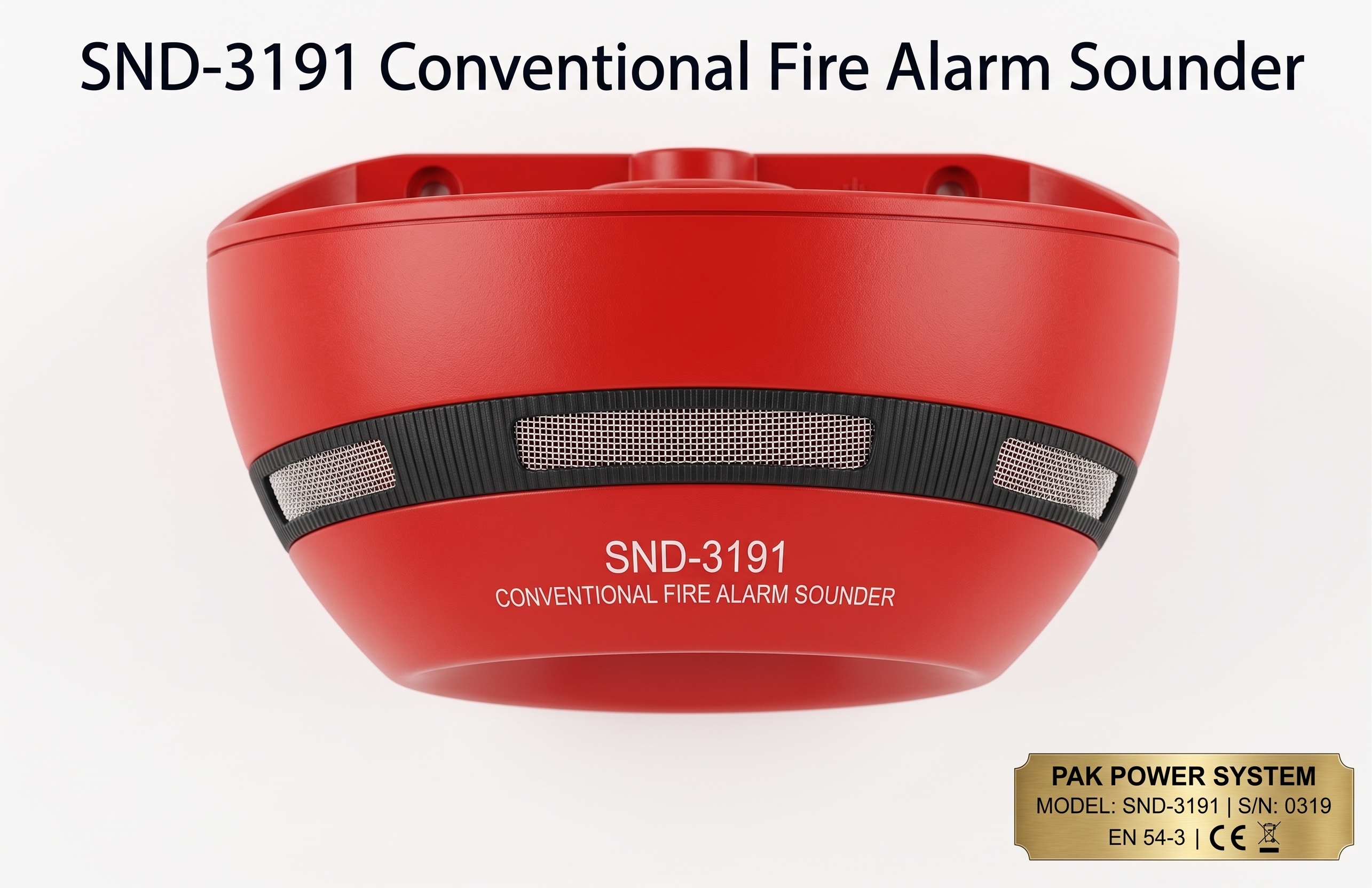

SND-3191 Conventional Fire Alarm Sounder
SND-3191 series internal fire alarm sounder have aesthetic design and low power consumption
and are suitable for use with any brand of fire detection systems.

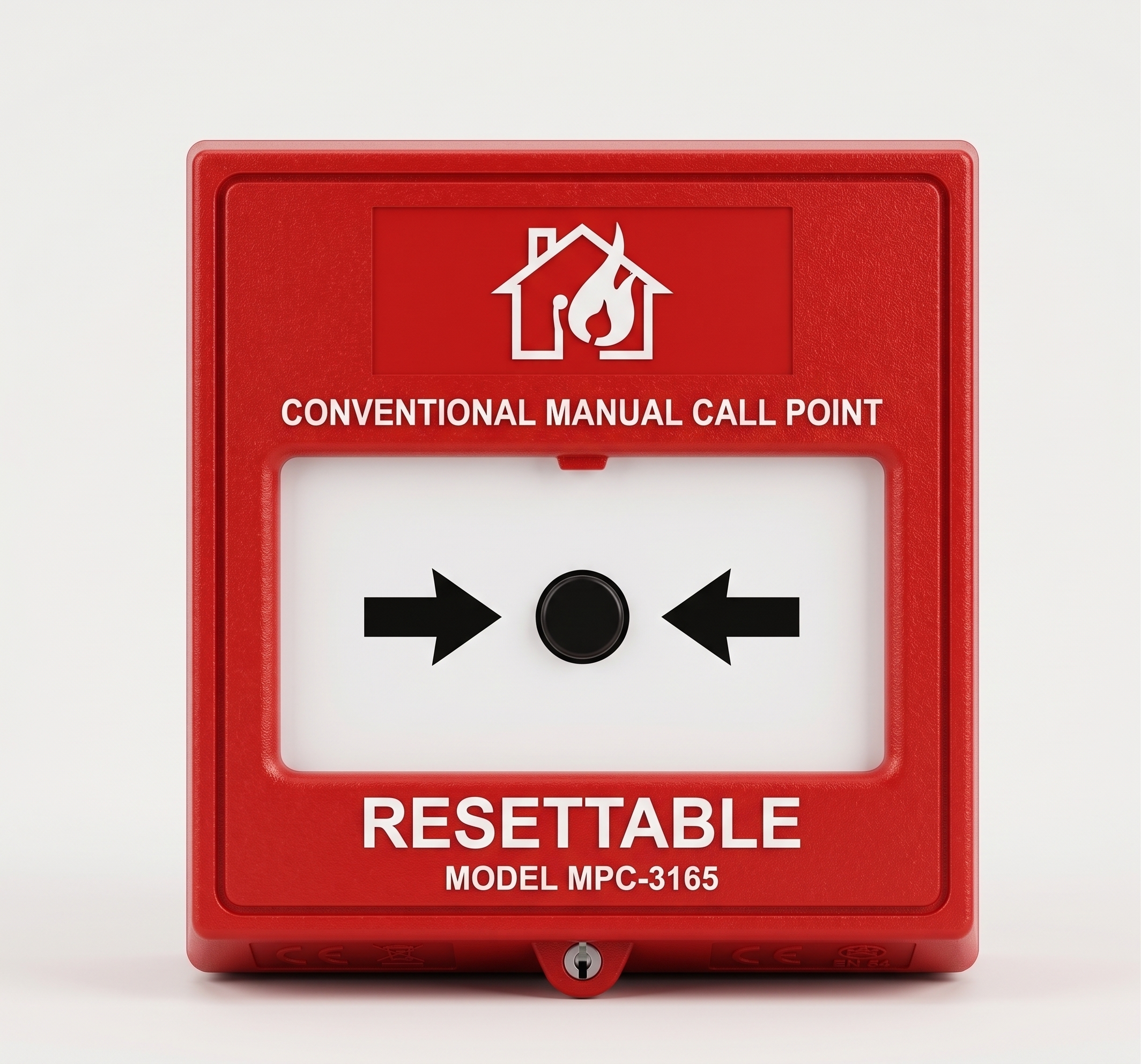

MPC-3165 Conventional Manual Call Point Resettable
MCP-3165 is designed to be connected to any brand of conventional fire detection and intruder
alarm systems. Internal 470-ohm resistance allow ease of installation. It is suitable for flush and
surface mounting. An optional transparent protective cover can be installed. It is easily resettab
via special key. Elegant design fits any environment.
